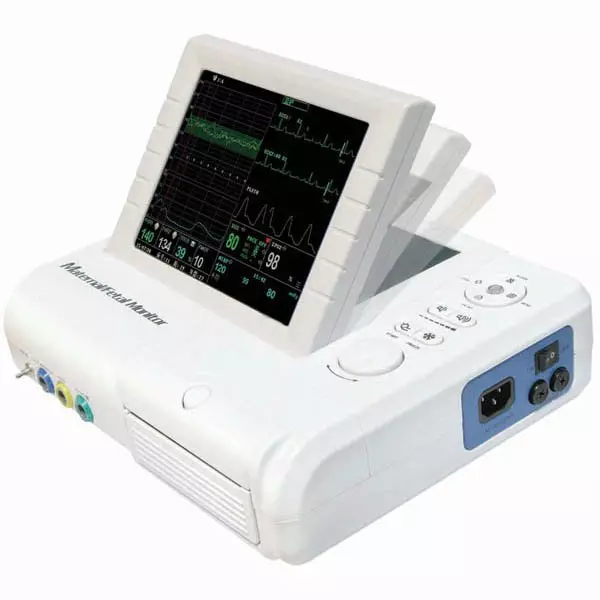

Moniteur mère/fœtus PDJ-800F

CFA

+ Free Shipping

Caractéristiques :

Transducteur à ultrasons simple ou gémellaire

Graphique de données et tableau de tendancesExamen de la mère et du fœtus

Imprimante thermique intégrée

Alarmes programmables

Capacité réseau intégrée pour se connecter au logiciel de surveillance central

Toutes les couleurs et apparences ou les paramètres peuvent être personnalisés

Vues multi-faces, sélectionnez la mise au point sur la mère ou le fœtus

Stockage des informations et des données du patient

Specifications:

Performance Specifications Display: 8.4″ Color TFT
Resolution: 640×480
Display Mode: Standard View, Fetal View, Mother View
Indicator: Power indicator light, Alarm sound
Interface: Socket for connecting fetal FHR, TOCO, and Fetal Movement
Sensor Socket for connecting mother ECG, NIBP and SPO2 sensor.
Net Socket(RJ45) for communication cable with Central Monitoring Station Software.
Power Supply: AC 100 ~ 240V, 50/60Hz, Power < 60VA
Trend Graph: Resolution from 1s, 5s, 10s. Maximum time 96 hours.
Trend Table: Resolution from 1s, 5s, 10s. Review up to 1000 items.
Alarm: Adjustable High and Low limits. Three level audible and visual alarm.
User Configuration: All the color of parameters and waves can be set according to user willing.
Technical specifications Meet the requirement of IEC60601 series
Degree of Protection: BF
Type of Protection: Class II with internal electric power supply
Dimention: 92(W)x82(H)x22(D)mm
Weight: 136g(with battery)
Operation Environment Temperature: 0°C~ +40°C
Humidity: 15% ~ 95%
Storage Environment Temperature: -20°C~ +60°C
Humidity: 10% ~ 95%
Patient Range: Pregnant Adult
FHR Ultrasound Frequency: 2MHz
Range: 50 ~ 210 bpm
Resolution: 1bmp
Accuracy: ±2bmp
FETAL MOVEMENT Manual fetal movement mark
SPO2 Measurement Range: 0 ~ 100%
Resolution: 1%
Accuracy: ±2%(70%~100%, Adult/Pediatric, non-motion)
±3%(70%~100%, Neonate, non-motion)0% ~ 69% unspecified
Alarm Range: 0% ~ 100%
Refreshing Rate: 1s
Pulse Rate Measurement Range: 25 ~ 250 bpm
Resolution: 1bpm
Accuracy: ±3 bpm (non-motion)
Alarm Range: 25 ~ 250 bmp
Refreshing Rate: 1s
ECG Lead mode: 3-lead or 5-lead
Lead selection: I, II, III, AVR, AVL, AVF, V
HR range: 15 ~ 300 bpm
ECG Waveform: 2 channals
Accuracy: ±2bpm or ±2%, which is greater
S-T segment detection range: -2.0mv ~ +2.0mv
Arrhythmia analysis: 13 kinds of arrhythmia
Alarm Range: 15 ~ 300 bpm
NIBP Method: Oscillometry
Mode: Manual/Auto/Contiuous
Measurement Range: 25 ~ 260mmHg
Auto Measure Interval: 5, 10, 15, 30, 45, 60, 90 minutes
Resolution: 1mmHg
Overpressure Protection: 300mmHg
Alarm range: 25 ~260mmHg
