DESCRIPTION

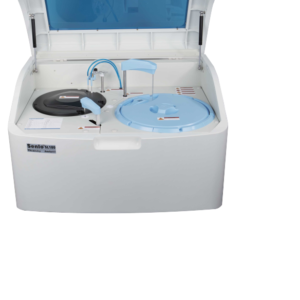

L’analyseur de biochimie est utilisé dans un laboratoire pour vérifier le cholestérol, le sucre, les enzymes, les protéines, etc. à partir d’échantillons biologiques tels que le sang ou l’urine. Analyseur de biochimie entièrement automatique BA-A-120 facile à utiliser avec un débit de 120 tests par heure
120 tests constants / heure avec double réactif
80 positions de réactif
Détection automatique du niveau de liquide, protection anti-collision.
Système optique entièrement fermé intégré, détection simultanée de plusieurs longueurs d’onde.
Nouveaux gobelets de réaction en plastique optique amorphe, transmittance parfaite.
Réfrigération à semi-conducteurs sans entretien
Surface conviviale et facile à utiliser

Multifunctional precision sampling probe
- External & internal mirror polish, external & internal probe washing
- Dedicated sampling probe equipped with sensitive liquid sensor, timely feedback of reagent & sample residuals
- Collision protection, automatic probe depth adjusting

Excellent mixer design
- Teflon coating mixer. No water dropping(reducing carry-over)
- Excellent mixing effect with standard mixing procedure

High precision ceramic syringe
- Permanent ceramic piston
- Accurate dispensing as low as 0.1µL

Reagent tray & Sample tray;
- 80 reagent positions,40 sample positions
- Non-stop cooling system with peltier pad inside, 24 hours 2℃-14℃
- Bar code reader(optional)

Reaction tray
- 50 reaction cuvettes
- Reaction volume as low as 150μL
- Stable & accurate temperature (37±0.1℃)for reaction

Advanced operating system
- User friendly software interface simple, easy-to-operation
- Sample automatic dilution(decrease, increase, normal)
- Reaction result automatic checking and warning, calibration result automatic checking, warning alarm log
- Linear & nonlinear calibration, Multi-points calibration up to 8 points
- Quality control apply to westgard, L-T plot, cumulative
SPECIFICATIONS
General information | |
Machine type | Random access, open reagent & locked reagent (optional) |
Test speed | Constant 120 tests/hour (Mono reagent or double reagent) |
Test principle | Colorimetric method, turbidimetry |
Test method | 1 point end, 2 point end, Fixed-Time, Kinetics |
Calibration type | Linear & nonlinear |
Sample unit | |
Sample tray | 40 sample positions |
Sample tube | Micro cup & test tube & blood collection tube can be used. (Φ 12 -13 )mm *(25-100 )mm |
Sample volume | 2-30uL step by 0.1uL |
Sample probe | Liquid surface detection, timely tracking for liquid volume. Collision avoidance |
Sample barcode | Sample barcode reader (optional) |
Reagent unit | |
Reagent tray | 80 reagent positions (40 for Rl & 40 for R2), Non-stop cooling system with peltier pad inside, 24 hours 2°C-14°C, open system, could accept any reagent |
Reagent volume | 20-300uL, step by luL |
Reagent needle | Liquid surface detection, timely tracking for liquid volume. Collision avoidance |
Regent barcode | Regent barcode reader (optional) |
Reaction unit | |
Reaction tray | 50 reaction cuvettes, new amorphous optical plastics reaction cups, perfect transmittance. |
Reaction volume | 150uL-330uL |
Reaction time | 10 minutes |
Temperature | Peltier pad incubation system, reaction temperature (37°C ±0.1 °C) |
Mixing system | |
Mixer | paddle-type mixing, effective reducing of carry-over |
Optical system | |
Light source | Halogen lamp |
Wavelength | 340nm; 405nm; 450nm; 505nm; 546nm; 578nm; 630nm;700nm(4 more options) |
Absorbance range | 0-4.0 Abs |
Resolution | 0.0001 Abs |
Operating system | |
Operation system | Windows XP, Windows 7, Windows 8, Windows 10 |
Data processing | Automatic calibration, test combination, effective time management of reagents, serum index, whole process detection, linear expansion of enzyme, blank deduction,dirty cuvette memory, cross infection prevention, patient information memory and association input, automatic report audit, data fuzzy query, report statistics and printing, reference range grading, alarm information classification, user operation privilege classification management. |
Report printing | 6 formats optional, support custom pattern |
interface | TCP/IP network interface |
Working conditions | |
Power supply | AC 110/220V ± 10%, 50/60 Hz, 650W |
Water consumption | 6L/hour(maximum) |
Dimension | 750mm*550mm *490mm(L*W*H) |
Weight | 70kg |
language | All languages |
